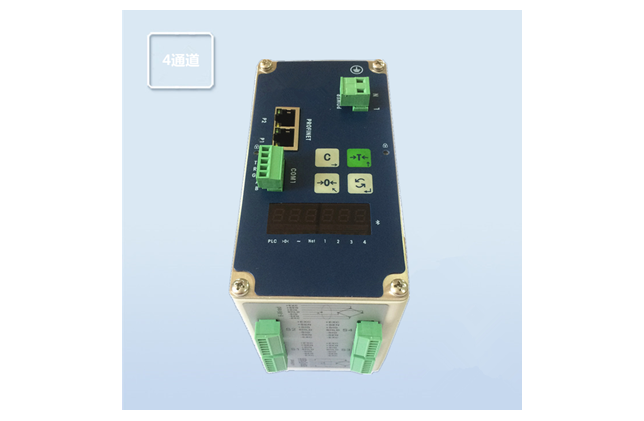

B088 Indicador de control de pesaje industrial de 4 canales

50/100/200/1000/2000/5000kg (BR118D)

Specifications	Technique
Accuracy Class	Class III accuracy
Display	6-bit, 7-segment, red LED display
Status of Display	Gross weight, net weight, dynamic, zero, channel switching, communication status
Key	Function key, peel, peel, reset, switch
A/D Conversion speed	200 times/second
Accept sensitivity	0 to 19 mV/V
Non-linearity & TC	≤0.0015%FS; ≤5ppm /℃
Exciting Voltage	5VDC At most150mA
Input load	4 Load cells 350Ω
Connect type	Four-wire or six-wire
Calibration	Weightcalibration to support long-range calibration
Filter	5 dynamic digital filtering
Serial Port	COM1-RS232/485 MODBUS-RTU
LAN	MODBUS-TCP,PROFINET
Bluetooth	CONNECTMOBILEAPP configuration,calibration,maintenance
Operation temp range	-10～40℃，95%RH
Power Supply	220VAC and 24VDC
Installation	DINStandard Industrial Guide

DOWN LOAD

INQUIRE

Product Description

Características y aplicaciones

Este indicador es un controlador de pesaje industrial, alto

precisión, admite entrada de 1 a 4 escalas y admite comunicación PROFINET y MODBUS-TCP, típica para pesaje, procesamiento por lotes, sistema de llenado que funciona junto con PLC o DCS.

Entrada de 1 a 4 escalas, velocidad ADC de 200 HZ

División de visualización 100000, aprobación CMC 6000e

Un puerto serie: RS232 / 485, puerto 2LAN

MODBUS-RTU y MODUBS-TCP

PROFINET para Siemens, peso del informe TCP

Configuración y calibración de aplicaciones móviles

Configuración y calibración de herramientas para PC

Montaje en carril industrial estándar (DIN)

Specifications	Technique
Accuracy Class	Class III accuracy
Display	6-bit, 7-segment, red LED display
Status of Display	Gross weight, net weight, dynamic, zero, channel switching, communication status
Key	Function key, peel, peel, reset, switch
A/D Conversion speed	200 times/second
Accept sensitivity	0 to 19 mV/V
Non-linearity & TC	≤0.0015%FS; ≤5ppm /℃
Exciting Voltage	5VDC At most150mA
Input load	4 Load cells 350Ω
Connect type	Four-wire or six-wire
Calibration	Weightcalibration to support long-range calibration
Filter	5 dynamic digital filtering
Serial Port	COM1-RS232/485 MODBUS-RTU
LAN	MODBUS-TCP,PROFINET
Bluetooth	CONNECTMOBILEAPP configuration,calibration,maintenance
Operation temp range	-10～40℃，95%RH
Power Supply	220VAC and 24VDC
Installation	DINStandard Industrial Guide
